T78/B(10mm) Guide Rail
T78/B lift guide rail

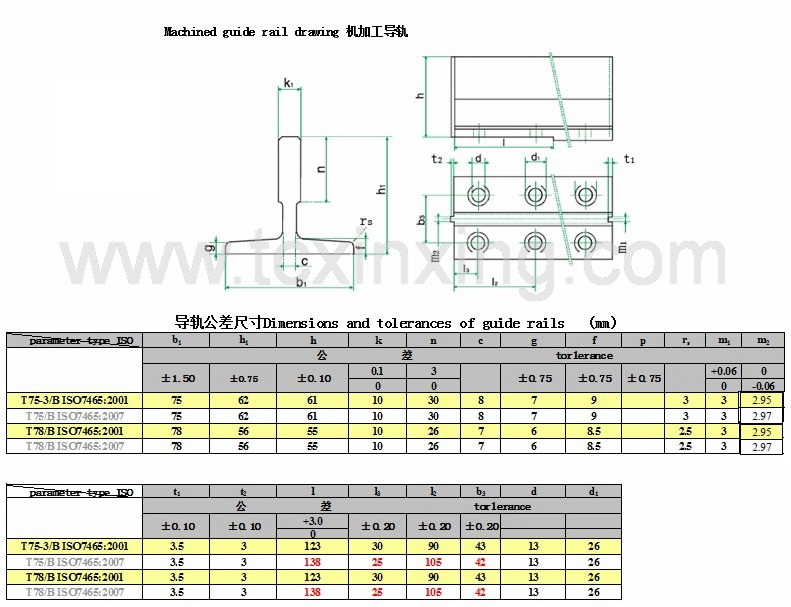

1. Basic dimensions: 78mm*56mm*10mm
notes: bottom width is 78mm, height is 56mm, top width is 10mm, length is 5meters.
2. Basic dimensions of its matched accessories
fishplate: 240mm*75mm*10mm; clip:8k; screw:M12*35
3. Processing methods: machining
4. A 20` container can hold about 600 pcs of T78/B elevator guide rails without accessories.
5. Packing:
Xinxing standard packing: all types of guide rails are packed in bundles, with protective sheathes protecting both ends and each bundle repacked in blue plastic sheeting.
If you need, we can also pack as your request.
6. Material: all types of guide rails’ material is Q235
7. Remarks
All our lift guide rails are produced according to ISO7465 international standard. If you have your own standard, we can also produce according to your specific dimensions. Dimensions displayed here is only a brief version. If you want details, please contact me.
